ETL Liner
ETL liner is a product specially designed to insulate shipping enabling the goods within to be protected from the dangerous temperature spikes witnessed during transport.

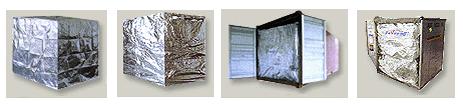

The ETL is a fully woven reflective liner that is hung into a general purpose ISO shipping container and allows for forklift loading, hand loading and slip sheet. Once loaded it is completely sealed providing a closed off temperature & humidity controlled environment for the goods inside.
Without the proper protection of the ETL, cargo inside a container can be exposed to dangerous heat penetrating by radiation and convection. Radiation or radiant heat comes through the container wall from the outside via infrared radiation while convection is the hot air circulating throughout the container.
The ETL eliminates these problems by reflecting up to 97% of the radiant heat and preventing hot or cold air coming through the sealed liner, which would affect the goods.
The ETL prevents heat from rapidly penetrating or escaping the liner thus ensuring greater temperature consistency for your cargo during transit
ETL Performance
-
-
Goods contained inside the ETL are protected from dangerous temperature spikes as only a very small percentage of heat (or cold) is allowed in or out of the liner due to reflective properties on both sides.
-
-

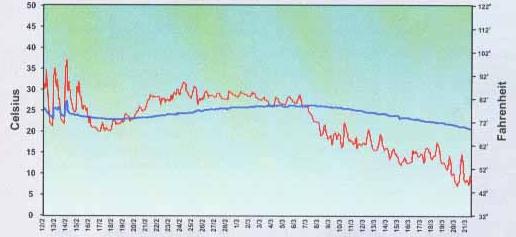

The red line shows a container without an ETL experiencing extreme temperature fluctuations while the blue line highlights the consistent temperature maintained within an ETL.
